Pneumatic Clamp CNC Sheet Metal Slotting Machine For Metal Plate V Cutting

تفاصيل المنتج

Place of Origin: China

اسم العلامة التجارية: Ronniewell

إصدار الشهادات: CE,ISO,CSA

Model Number: RKC-1250*3200

شروط الدفع والشحن

Minimum Order Quantity: 1set

الأسعار: Please confirm with us

Packaging Details: main frame naked, control box full covered with water-proof package

Delivery Time: 40days

Payment Terms: 30% down payment by TT, 70% balance before shipment

Supply Ability: 40set/month

احصل على افضل سعر
تسليط الضوء:

slotter machine ,slotting machine tool

,

slotting machine tool

Structure:
Back gauge feeding in
Clamp:
Pneumatic driven
Blade:
3/4 piece steel alloy blade
Cooling:
With cooling system
Function:
Slotting V channel on sheet metal
Purpose:
Prepare work before folding on press brake
Structure:
Back gauge feeding in
Clamp:
Pneumatic driven
Blade:
3/4 piece steel alloy blade
Cooling:
With cooling system
Function:
Slotting V channel on sheet metal
Purpose:
Prepare work before folding on press brake

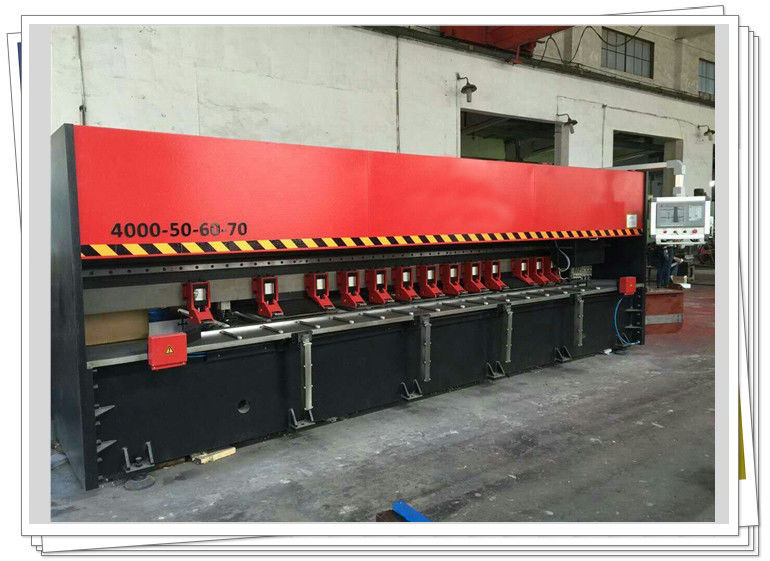

Pneumatic Clamp CNC Sheet Metal Slotting Machine For Metal Plate V Cutting

Pneumatic Clamp CNC Sheet Metal Slotting Machine For Metal Plate V Cutting







Brief introduction:


Sheet metal slotting machine  is numerical control with programming controller. Servo motor control with high accuracy positioning & high working speed.







Description of CNC sheet metal slotting machine:



  • Slotting machine is mainly used for make the V shape grooving in various kinds of sheet metal, such as stainless steel sheet, iron sheet, copper sheet, aluminum sheet, aluminum composite sheets,etc.

  • By slotted sheet working on press brake, the workpiece edge radius is extremely small.

  • Also, the bending force is largely reduced compare with no grooving sheet.

  • It is suitable for high-grade construction decoration industry.








Technical Parameter:

SN Specification Parameter
1 Processing plate thickness 0.6mm-4.5mm
2 Processing plate length 4000mm
3 Processing plate width 1220 mm
4 Grooving speed 60m/ min
5 Plate sending speed 2m/min-0m/ min
6 Min. setting unit of Y axis 0.01 mm
7 Min.positioning accuracy of Y axis ±0.05 mm
8 Min. setting unit of Z axis 0.01mm
9 Min.positioning accuracy of Z axis ±0.03mm
10 X axis servo motor power W=4.5Kw
11 Y axis Servo motor power W=1Kw
12 Z axis servo motor power W=1Kw
13 Air supply pressure 0.4Map-0.6 Map
14 Max grooving depth 2.5mm
15 Overall dimension(G.W) 5800mm*2350mm*2100mm
16 Weight About 10T







Feature:



  • Environment-friendly self-lubricating design, low-friction controller.

  • High-precision, maintenance free

  • High-speed and low noise,

  • Slide block is interchangeable

  • International standard specifications

  • High-rigid in four lines of steel balls

  • Smooth function and novel circulation







Working sample:

Pneumatic Clamp CNC Sheet Metal Slotting Machine For Metal Plate V Cutting 0





Points you may concern:


Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.


Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.


After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.







Name of the machine:



sheet metal slotting machine, sheet metal grooving machine, metal plate grooving machine, CNC Stainless steel V Groover machine,CNC V Grooving machine,CNC v-cutting machine, stainless steel slotting machine, stainless steel plane slot machine,cnc slotting machine
